Incoloy 800 Alloy – Sheets, Plates, Bars, Pipes, Coils, Strips, Wires
Incoloy 800 is part of our Incoloy alloy product range, which includes various nickel-iron-chromium alloys designed for high-temperature and corrosion-resistant applications.
👉 Explore our full Incoloy alloy products to compare different grades for your project.
Available Product Forms & Specifications
Huaxiao Metal provides Incoloy 800 in a wide range of industrial forms to meet diverse project needs:
| Form | Typical Size Range | Applications |
|---|---|---|
| Sheets / Plates | 0.5–150 mm thickness, 1000–2500 mm width | Heat exchangers, chemical equipment, industrial furnace plates |
| Strips | 0.1–8 mm thickness, 5–200 mm width | Coil processing, welding, precision components |
| Bars / Rods | 6–300 mm diameter | Shafts, mechanical parts, industrial components |
| Wires / Wire Rods | 0.3–10 mm diameter | Springs, fasteners, coil wires |
| Pipes / Tubes | OD 6–325 mm, wall 1–25 mm | Industrial piping, high-temp vessels, petrochemical lines |
| Coils / Strips | 0.3–10 mm thickness, up to 2000 mm width | Continuous processing, precision cutting |
| Custom Forged Parts | As per client drawings | High-temperature and corrosion-resistant applications |
By offering multiple forms including strips, wires, and tubes, we can meet both large-scale industrial projects and precision manufacturing requirements.
Technical Specifications
What is Incoloy 800 Alloy Steel?
Incoloy 800 is a nickel-iron-chromium alloy steel known for its excellent resistance to high temperature, oxidation, and corrosion. Designated as UNS N08800 and Werkstoff 1.4876, this superalloy combines exceptional strength, ductility, and thermal stability, making it an ideal choice for applications in the chemical, petrochemical, power generation, and industrial furnace industries.
Key Features:
High-temperature stability up to 980°C
Excellent resistance to oxidation, carburization, and sulfidation
Good weldability and machinability
Huaxiao Metal supplies Incoloy 800 in multiple forms, including sheets, plates, narrow strips, bars, wires, and pipes, catering to global industrial projects.
Advantages of Incoloy 800 – Why Choose It?
High-Temperature Strength
Withstands up to 980°C, maintaining mechanical integrity
Suitable for furnaces, boilers, and superheater tubes
Excellent Corrosion Resistance
Resists oxidation, sulfidation, and carburization
Ideal for chemical, petrochemical, and oil & gas environments
Versatile Forms & Easy Fabrication
Sheets, plates, bars, wires, strips, pipes – ready to use
Supports welding, machining, bending, and heat treatment
Global Standard Compliance
ASTM, ASME, DIN, BS, UNS certifications
Guaranteed quality for export and industrial projects
Chemical Composition:
| Element | Typical Range (%) |
|---|---|
| Nickel (Ni) | 30–35 |
| Iron (Fe) | 39–45 |
| Chromium (Cr) | 19–23 |
| Manganese (Mn) | 1.0 |
| Carbon (C) | 0.10 |
| Copper (Cu) | 0.5–1.0 |
Mechanical Properties:
| Property | Value |
|---|---|
| Tensile Strength | 550–750 MPa |
| Yield Strength | 275–450 MPa |
| Elongation | 30–40% |
| Hardness | 150–200 HB |
| Max Service Temperature | 980°C |
Incoloy 800 Equivalent Grades
| Standard System | Equivalent Grade | Standard Number |
|---|---|---|
| UNS | N08800 | ASTM / ASME |
| ASTM | Incoloy 800 | ASTM B407 / B408 / B409 |
| ASME | SB-407 / SB-408 | ASME Boiler Code |
| EN (Europe) | X10NiCrAlTi32-20 | EN 10095 |
| DIN (Germany) | 1.4876 | DIN EN |
| JIS (Japan) | NCF 800 | JIS G4901 |
| ISO | NiCr32Fe20 | ISO 6208 |
| GB (China) | GH3536 / NS112* | GB/T Standards |
Fabrication & Machining:
Excellent weldability and formability
Cutting and machining per standard tooling
Custom dimensions available on request
Corrosion Resistance:
Resists oxidation, carburization, and acidic corrosion
Ideal for chemical, marine, and high-stress environments

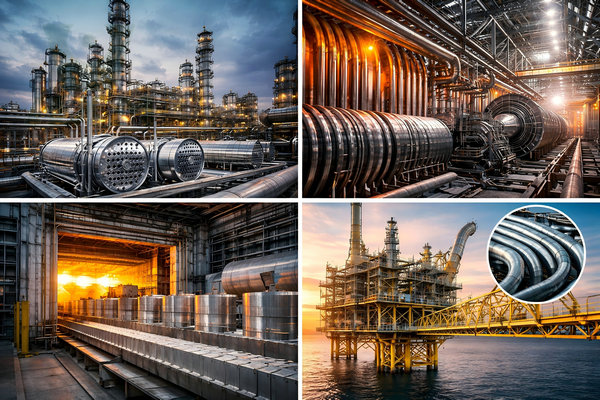

Industrial Applications:
Incoloy 800 is widely used across industries:
Chemical & Petrochemical:
Heat exchangers, reactor vessels, reformers
Power Generation:
Boiler superheaters, reheaters, and turbine components
Industrial Furnaces:
Furnace components, heat treatment trays
Oil & Gas:
High-temperature piping, reactor tubes, offshore processing equipment
Precision & Custom Parts:
Springs, fasteners, coils, and wire components
Including multiple product forms allows customized solutions for almost any industrial challenge.
Why Choose Huaxiao Metal as Your Incoloy 800 Supplier?
Stock availability and fast delivery: Sheets, plates, strips, bars, wires, pipes in stock
Mill Test Certificates (EN 10204 3.1) and third-party inspection
Technical support for alloy selection and custom sizes
Global Export & Experience: Serving EU, South American, Middle East, and Asian markets
Custom Processing: Cutting, bending, forging, and heat treatment services
By choosing Huaxiao Metal, you ensure fast delivery, competitive pricing, and high-quality Incoloy 800 products.
FAQ
What is the difference between Incoloy 800, 800H, and 800HT?
800H and 800HT have stricter carbon, aluminum, and titanium control. They are optimized for higher temperature creep resistance, ideal for extreme industrial applications.
Can Incoloy 800 be welded?
Yes, standard welding techniques work. Pre-heating is recommended for thick sections to maintain strength.
What product forms are available?
Sheets, plates, strips, bars, wires, pipes, coils, and custom forged components.
What industries use Incoloy 800?
Chemical, petrochemical, power generation, furnace, oil & gas, aerospace, and precision manufacturing.
Contact Huaxiao Metal Today
Price Influencers:
Material form: sheet, plate, strip, bar, wire, pipe
Thickness, diameter, width, and length
Quantity and delivery location
Heat treatment or custom fabrication
Contact us today to request a quote for Incoloy 800 in your required form. Our team will provide a fast, competitive, and tailored offer.
