00Cr17 material is added titanium and niobium based on 430 stainless steel, and then reduces the carbon content, thus improving the processing performance, and welding main corrosion resistance.
Often referred to by its Chinese GB standard, 00Cr17 is a high-performance ferritic stainless steel that offers an excellent combination of corrosion resistance, formability, and cost-effectiveness. It is essentially an ultra-low carbon and nitrogen version of Grade 430, enhanced with stabilizing elements like Titanium (Ti) or Niobium (Nb).
If you are searching for its internationally recognized equivalents like AISI 430, 439, UNS S43035, or the European grade 1.4510, you have found the right material.
This guide provides a complete technical overview of 00Cr17 stainless steel, covering its properties, equivalent grades, and primary applications to help you determine if it’s the right choice for your project.
Looking for industrial stainless steel with excellent weldability, cost-effectiveness, and resistance to intergranular corrosion? You’ve found the answer! 00Cr17 Material, as an outstanding representative of the new generation of ultra-low carbon, high-purity ferritic stainless steel, is rapidly becoming the best alternative to traditional 430 stainless steel in many demanding applications.
Huaxiao Metal, as a professional supplier of 00Cr17 Stainless Steel, not only provides high-quality materials but is also committed to becoming your professional metal solutions partner. This article will thoroughly unveil the mysteries of 00Cr17 Material from a professional perspective, helping you make the most informed purchasing decisions.
00Cr17 (AISI 430/S43035) Stainless Steel Data Sheet
Meaning of 00Cr17 Material
00Cr17 is a type of ultra-low carbon, high-purity ferritic stainless steel defined in the Chinese national standard (GB). The “00” in the designation represents its extremely low carbon content (< 0.03%), while “Cr17” indicates that its main alloying element is approximately 17% chromium (Cr).
Equivalent Grades of 00Cr17
One of the most critical steps in sourcing materials globally is understanding their international equivalents. 00Cr17 is the Chinese designation for a grade that is recognized worldwide under different standards.
| Standard | Equivalent Grade(s) |
| GB/T (China) | 00Cr17 (S11863) |
| AISI/ASTM (USA) | 430 / 439 / S43035 |
| JIS (Japan) | SUS430LX / SUS439 |
| DIN/EN (Europe) | X3CrTi17 / 1.4510 |
Although the above grades are very similar in performance, in actual procurement, a trace amount of Ti/Nb stabilization treatment (such as 1.4510) will further improve its high-temperature performance and weldability. Huaxiao Metal can recommend the most suitable 00Cr17 Stainless Steel or its international equivalent based on your specific project needs and budget.
As a leading steel supplier, Huaxiao Metal can provide 00Cr17 steel that meets the precise specifications of any of these international grades.
00Cr17 Material Chemical Composition
The chemical makeup of 00Cr17 is precisely controlled to deliver its unique properties, particularly its enhanced weldability and formability compared to standard 430 grade.
| Element | Content (%) | Effect |
| Carbon (C) | ≤ 0.03 | Ultra-low carbon improves weldability and ductility. |
| Silicon (Si) | ≤ 1.00 | Improves strength and oxidation resistance. |
| Manganese (Mn) | ≤ 1.00 | Acts as a deoxidizer and improves hot working properties. |
| Phosphorus (P) | ≤ 0.04 | |
| Sulfur (S) | ≤ 0.03 | |
| Chromium (Cr) | 16.00 – 19.00 | Key element for forming the passive layer that provides corrosion resistance. |
| Nickel (Ni) | ≤ 0.60 | May be present in small amounts. |
| Ti / Nb | ≥ 8 x C% | Stabilizing elements that prevent chromium carbide precipitation at grain boundaries during welding, thus avoiding sensitization and intergranular corrosion. |
00Cr17 Material Physical Properties
① Density Density(20℃)/kg/dm3:7.7,
②Melting point / ℃:1365
③Specific heat capacity (0~100℃)/kg/(kg.k):0.46,
④ Thermal conductivity/w/(m.k)100℃-:35.1,
⑤ Thermal conductivity/w/(m.k)500℃-: -,
⑥ Coefficient of linear expansion/(10-6/k) 0~100℃:10.4,
⑦ Linear expansion coefficient /(10-6/k)0~579℃: -,
⑧ Resistivity (20℃)/(.mm2/m):0.6,
⑨ Longitudinal modulus of elasticity(20℃)/GPa:200.
⑩Magnetic:Yes.
00Cr17 Material Mechanical Properties
(1) delivery status: bar solid solution treatment, plate solid solution pickling.
(2) tensile strength (RM/MPa): 365.
(3) elongation strength (Rp0.2/MPa): 175.
(4) Elongation A/%: 22.
(5) section shrinkage (Z / %): –
00Cr17 has a single-phase ferrite microstructure, meaning it is non-magnetic (unlike austenitic stainless steel). Furthermore, it has a relatively small coefficient of thermal expansion, exhibiting stability in applications with large temperature variations.
00Cr17 Material Heat Treatment
① hardness HBW ≤: annealed 183, hardness HRB ≤: 88,
② heating temperature: 780 ~ 950,
③ heating mode: air cooling or slow cooling.
00Cr17 application areas: used in the manufacture of warm water tanks, hot water supply, sanitary appliances, household use of durable machines, etc..
Key Features & Benefits of 00Cr17 Steel
Why choose 00Cr17 steel for your application? Its advantages go beyond the data sheet.
Excellent Weldability: The addition of stabilizing elements (Ti/Nb) and ultra-low carbon content means 00Cr17 can be welded without risk of intergranular corrosion, making it superior to standard Grade 430 for fabricated structures.
Good Corrosion Resistance: It offers strong resistance to atmospheric corrosion, oxidizing acids, and chloride-induced stress corrosion cracking, making it ideal for water tanks and home appliances.
Superior Formability: Its low carbon content gives it excellent ductility and deep-drawing capabilities, allowing it to be easily formed into complex shapes.
Cost-Effective Performance: As a ferritic stainless steel, it does not contain expensive nickel, making it a highly economical alternative to 300-series grades like 304 in many applications.
00Cr17 vs. 304 vs. 430 Stainless Steel: A Quick Comparison
Choosing the right grade is crucial for performance and budget. Here’s how 00Cr17 (as 439) compares to the most common austenitic (304) and ferritic (430) grades.
| Feature | 00Cr17 / 439 | AISI 304 | Standard AISI 430 |
| Cost | Low | High | Very Low |
| Corrosion Resistance | Good | Excellent | Fair |
| Weldability | Excellent | Excellent | Poor (Becomes Brittle) |
| Formability | Very Good | Excellent | Good |
| Magnetism | Magnetic | Non-magnetic | Magnetic |
| Typical Use | Welded parts, exhausts, water heaters | Food processing, chemical tanks | Decorative trim, non-welded parts |
Conclusion: If your application demands the highest corrosion resistance in acidic environments, 304 is the choice. If cost is the primary driver and no welding is involved, 430 may suffice. However, 00Cr17/439 is the ideal choice when you need a balance of good corrosion resistance, excellent weldability, and lower cost.
Common Applications of 00Cr17 (AISI 430/439) Steel
The unique properties of 00Cr17 steel make it a preferred material across several industries:
Automotive Exhaust Systems: Its excellent resistance to high-temperature corrosion from exhaust gases and vibrations makes it a durable and cost-effective choice for mufflers and pipes.
Hot Water Tanks & Heaters: It provides outstanding resistance to chloride stress corrosion cracking, a common failure mode in hot water environments.

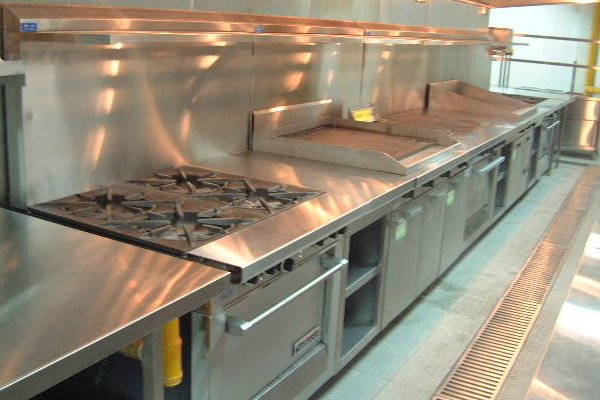

Household Appliances: Widely used for washing machine drums, dishwasher linings, and kitchen sinks due to its formability, corrosion resistance, and clean appearance.
Architectural Decoration: Suitable for interior and exterior panels, elevators, and decorative tubing where a durable and aesthetic finish is required.
Industrial Equipment: Used in the construction of heat exchangers, containers, and other welded equipment in the sugar and other processing industries.
Does your project require a specific 00Cr17 specification? Huaxiao Metal can provide customized coils, sheets/plates, and tubes/pipes. The thickness, width, and surface treatments (such as 2B, BA, No.4) of our products can be precisely machined according to your drawings or standards. We promise that all products meet international standards and provide comprehensive after-sales service.
Why Choose Huaxiao Metal for 00Cr17 Stainless Steel?
At Huaxiao Metal, we specialize in supplying a full range of stainless steel products, including 00Cr17 stainless steel coils, sheets, and strips. We ensure:
Strict quality control
Flexible MOQ
Fast delivery
Competitive pricing
Expert technical support
🔍 Need pricing or technical data? Contact us now to get a quote or learn more about 00Cr17 material stock and availability.
FAQs About 00Cr17 Stainless Steel
Is 00Cr17 magnetic?
Yes, being a ferritic stainless steel, 00Cr17 is inherently magnetic.
Can 00Cr17 be welded easily?
Yes, but it requires control over heat input and post-weld treatment to avoid brittleness.
Is 00Cr17 suitable for outdoor use?
It’s suitable for mildly corrosive outdoor environments, but not ideal for marine or chloride-rich areas.
What type of stainless steel is 00Cr17?
00Cr17 is an ultra-low carbon ferritic stainless steel. Its main characteristics are excellent resistance to intergranular corrosion, good plasticity and machinability, and high cost-effectiveness, making it an ideal alternative to traditional 430 stainless steel.
What are the main differences between 00Cr17 and the common 430 stainless steel?
The biggest difference lies in the carbon content. 00Cr17 has an extremely low carbon content (< 0.03%), significantly lower than 430 (< 0.12%). This allows 00Cr17 to maintain excellent resistance to intergranular corrosion after welding, while 430 is prone to intergranular corrosion after welding.
What are the main differences between 00Cr17 and the common 430 stainless steel?
The biggest difference lies in the carbon content. 00Cr17 has an extremely low carbon content (< 0.03%), significantly lower than 430 (< 0.12%). This allows 00Cr17 to maintain excellent resistance to intergranular corrosion after welding, while 430 is prone to intergranular corrosion after welding.
What are the international/foreign equivalent grades of 00Cr17 material?
00Cr17 has several approximate or equivalent grades in different countries and standards, such as SUS430LX in Japan and EN 1.4003 in Europe. They are very similar in composition and performance and are often used interchangeably.
In which industries is 00Cr17 stainless steel mainly used?
Due to its good corrosion resistance, formability and weldability, 00Cr17 is widely used in the manufacture of home appliances (such as washing machine drums and microwave oven liners), catering equipment, building decoration and some parts of automobile exhaust systems.
In Conclusion
00Cr17 stainless steel is a cost-effective material for applications where moderate corrosion resistance and good surface quality are required. Its widespread equivalents like AISI 430 and SUS 430 ensure global interchangeability.
